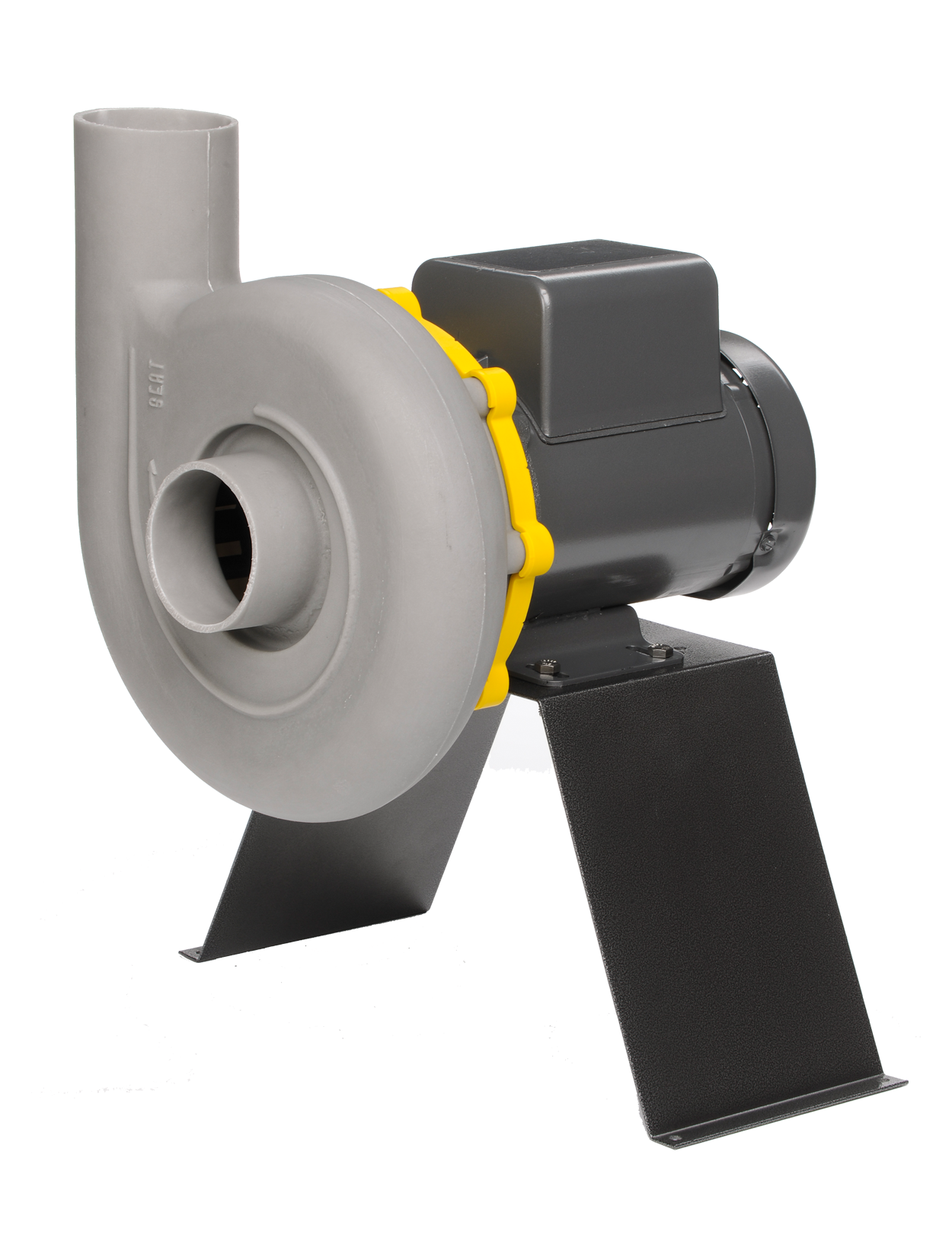

Storm 12 - Available in single phase and 3 phase motors, this unit designed to exhaust gases from corrosive environments, this fan is primarily used in chemical cabinets, water treatment, scrubbers, chemical plants, industrial exhaust and other applications. This efficiently packaged all-polypropylene construction provides maximum protection against acids and corrosion. Hindered-Amine Light Stabilizers (HALS) for increase UV resistance.

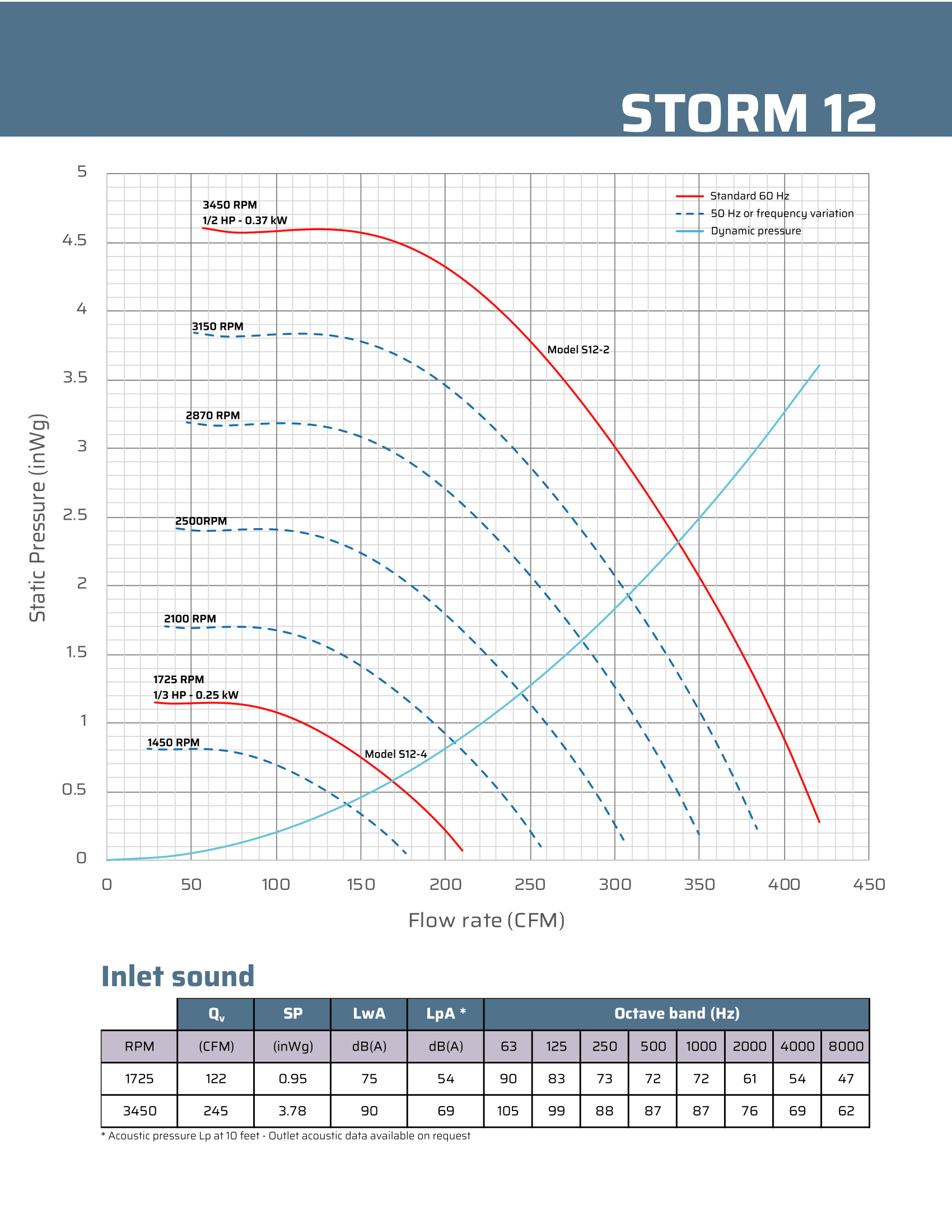

Static Pressure Range: 0.75 to 4.5 WG
Flow Range: 30 to 350 CFM
VFD Motors Option: Yes

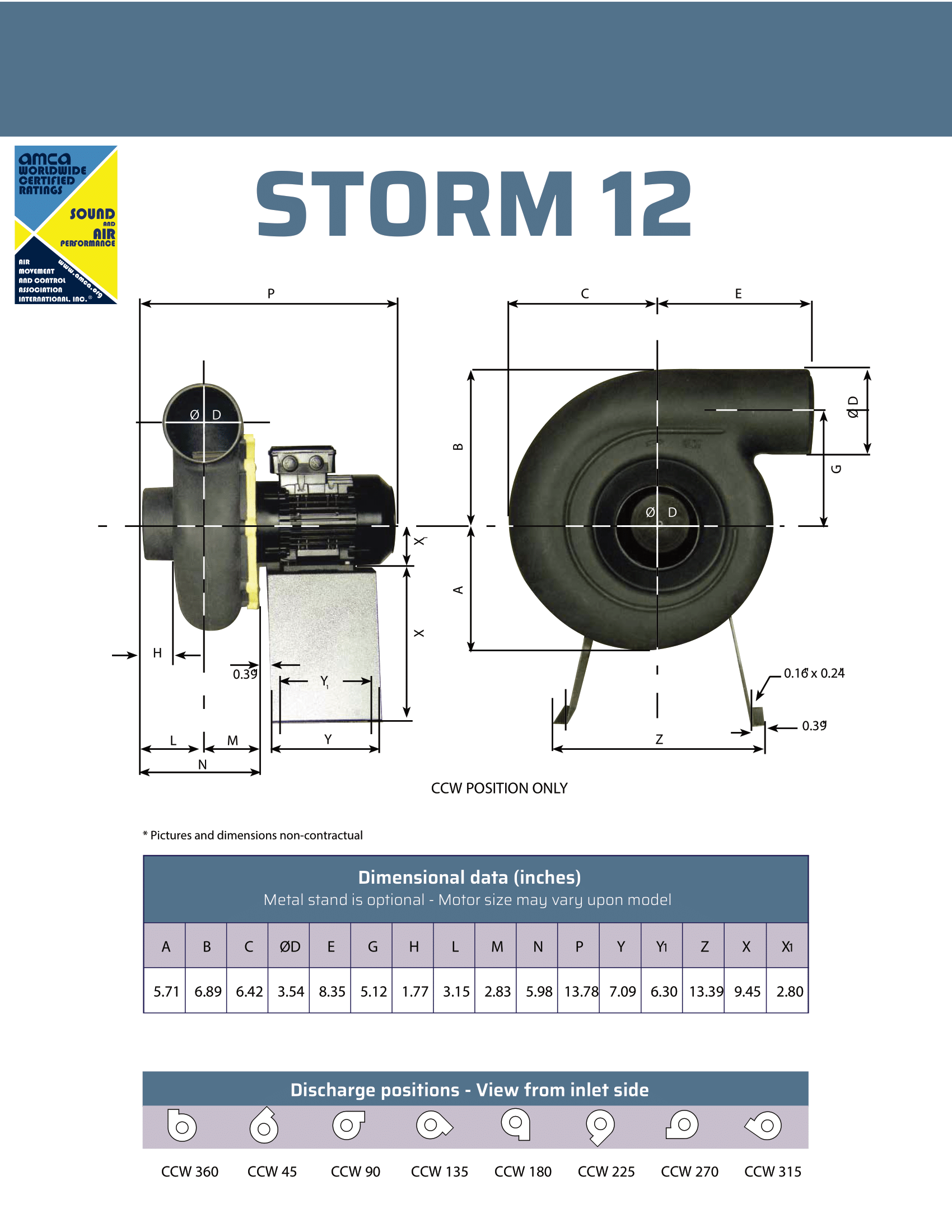

Inlet Diameter: 3.5"
Exhaust Diameter: 3.5”
*Within reason, a reducer or coupler may be utilized to adapt to smaller or larger size
Noise Level A: RPM 1435=72dB, RPM 1720=75db, RPM 2870=85, RPM 3440=88
Also available in XPFC * CIP corrosion-resistant with carbon Impregnated polypropylene for explosive atmosphere applications.
