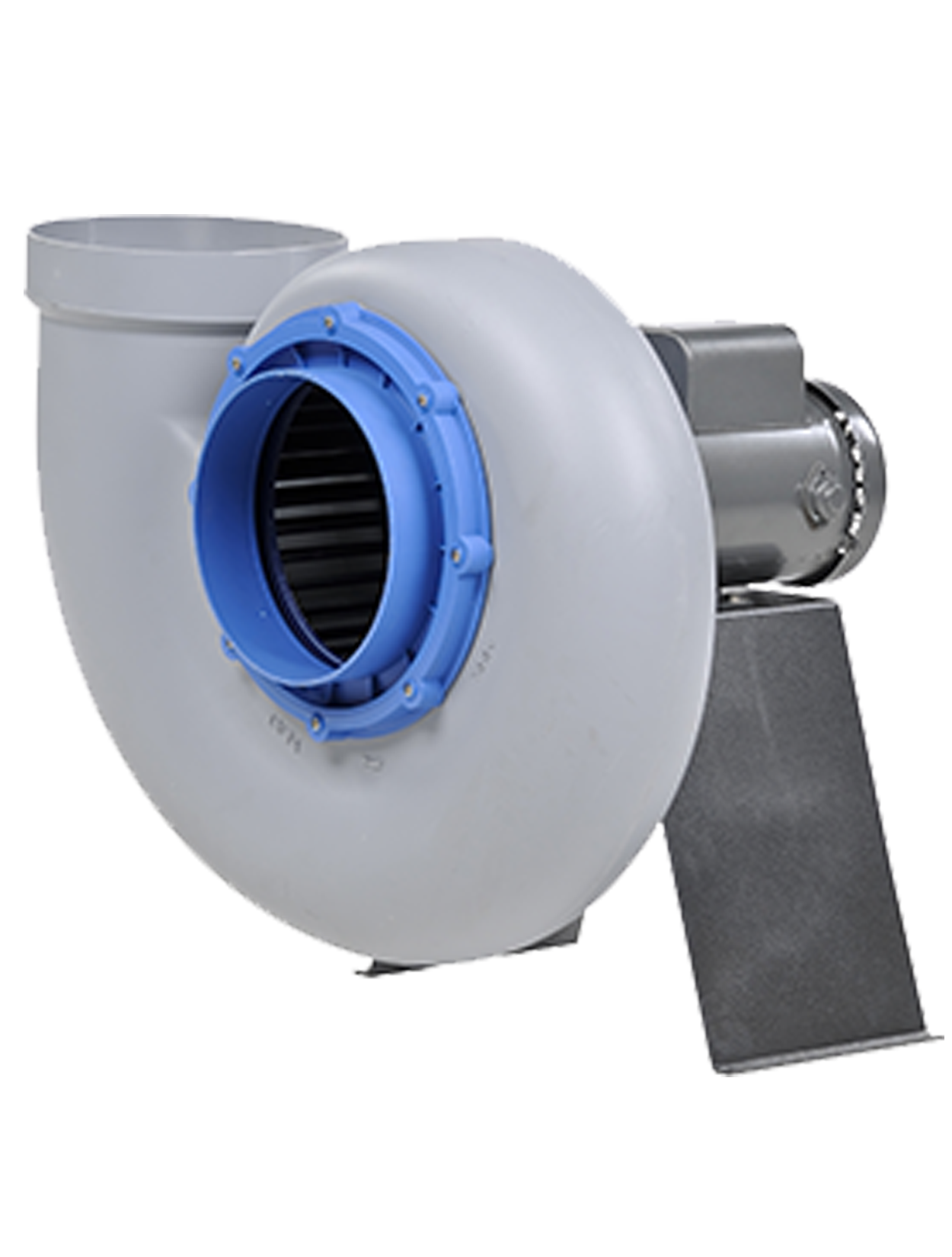

Plastec 30 - Designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion. Hindered-Amine Light Stabilizers (HALS) for increase UV resistance.

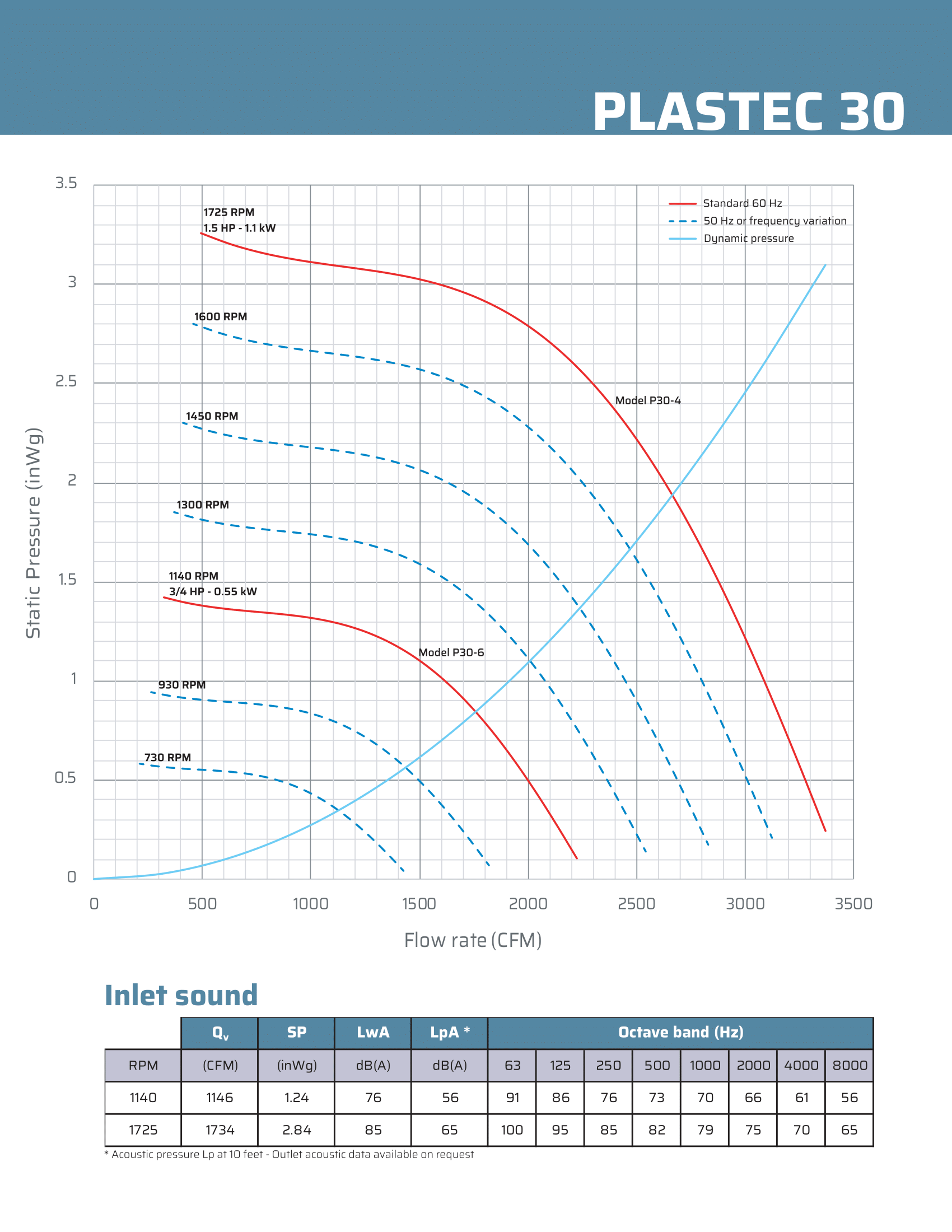

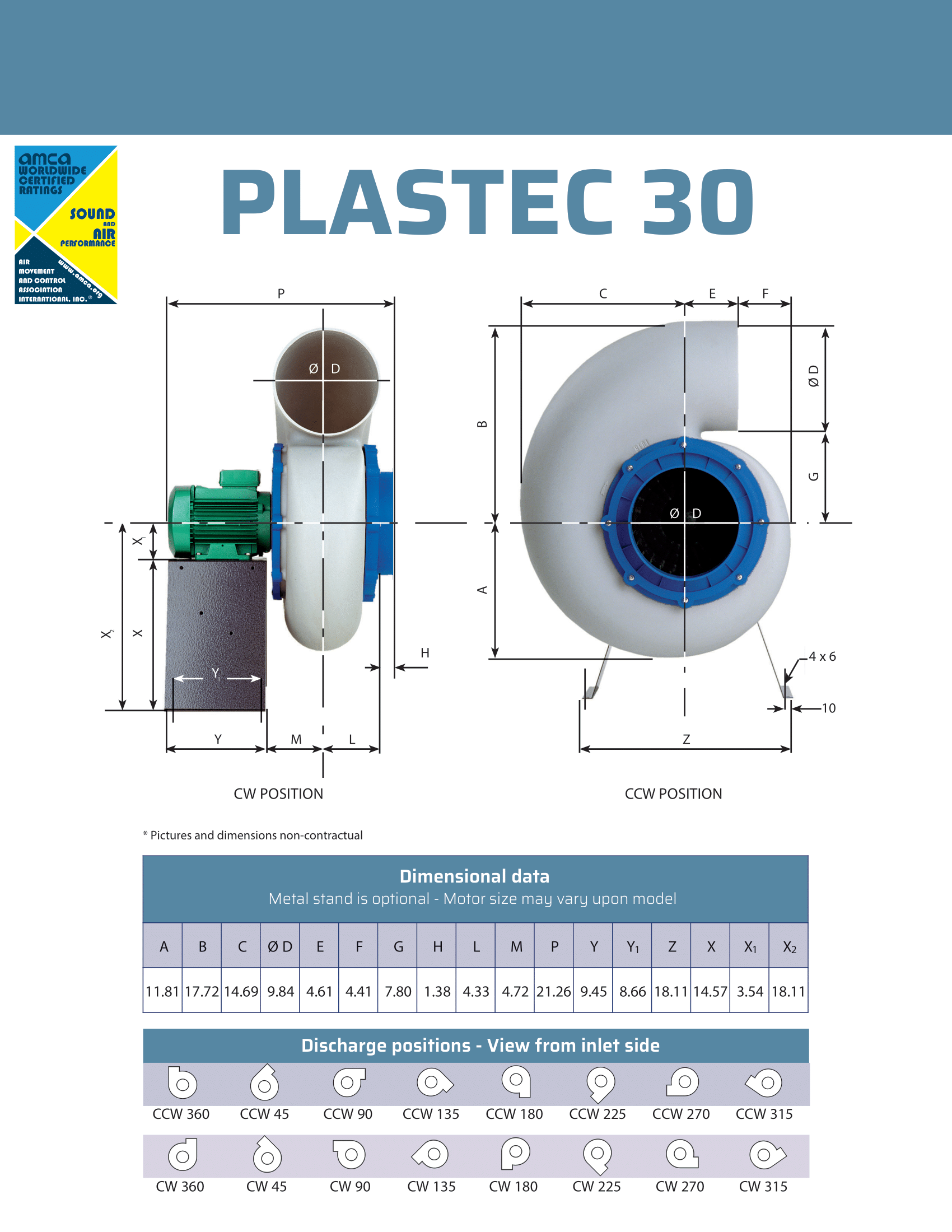

Plastec 30 Performance & Dimensional Specifications PDF
Static Pressure Range: 0.5 to 3 WG
Flow Range: 415 to 3120 CFM
VFD Motors Option: Yes
Inlet Diameter: 10"
Exhaust Diameter: 10.75”
XPFC * CIP Exhaust Diameter: 10.25”
*Within reason, a reducer or coupler may be utilized to adapt to smaller or larger size
*Also available in XPFC * CIP corrosion-resistant with carbon Impregnated polypropylene for explosive atmosphere applications.
