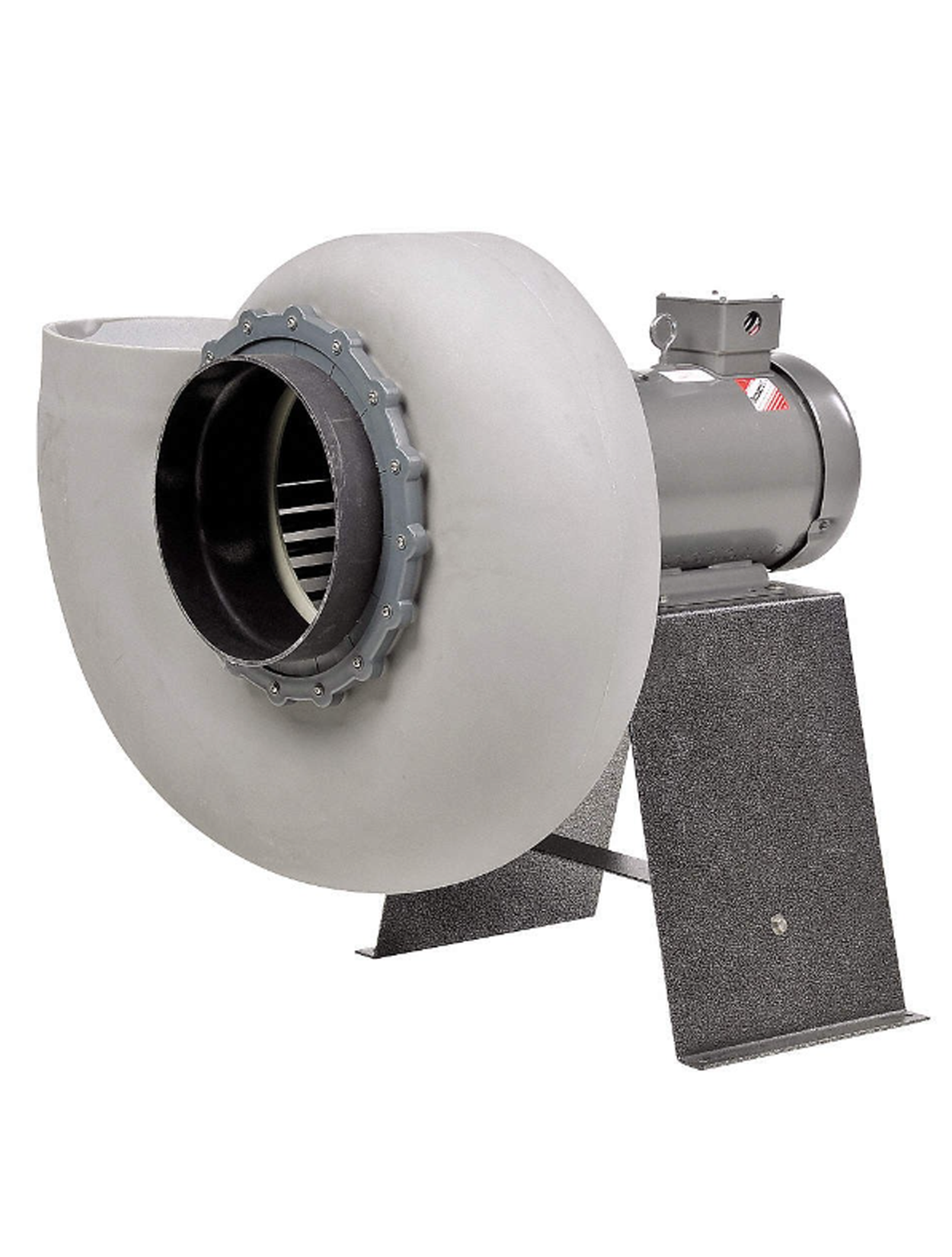

Plastec 35 Direct Drive Forward Curve Polypropylene Blower
Plastec 35 Direct Drive Forward Curve Polypropylene Blower
Plastec 35 - Designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion. Hindered-Amine Light Stabilizers (HALS) for increase UV resistance.

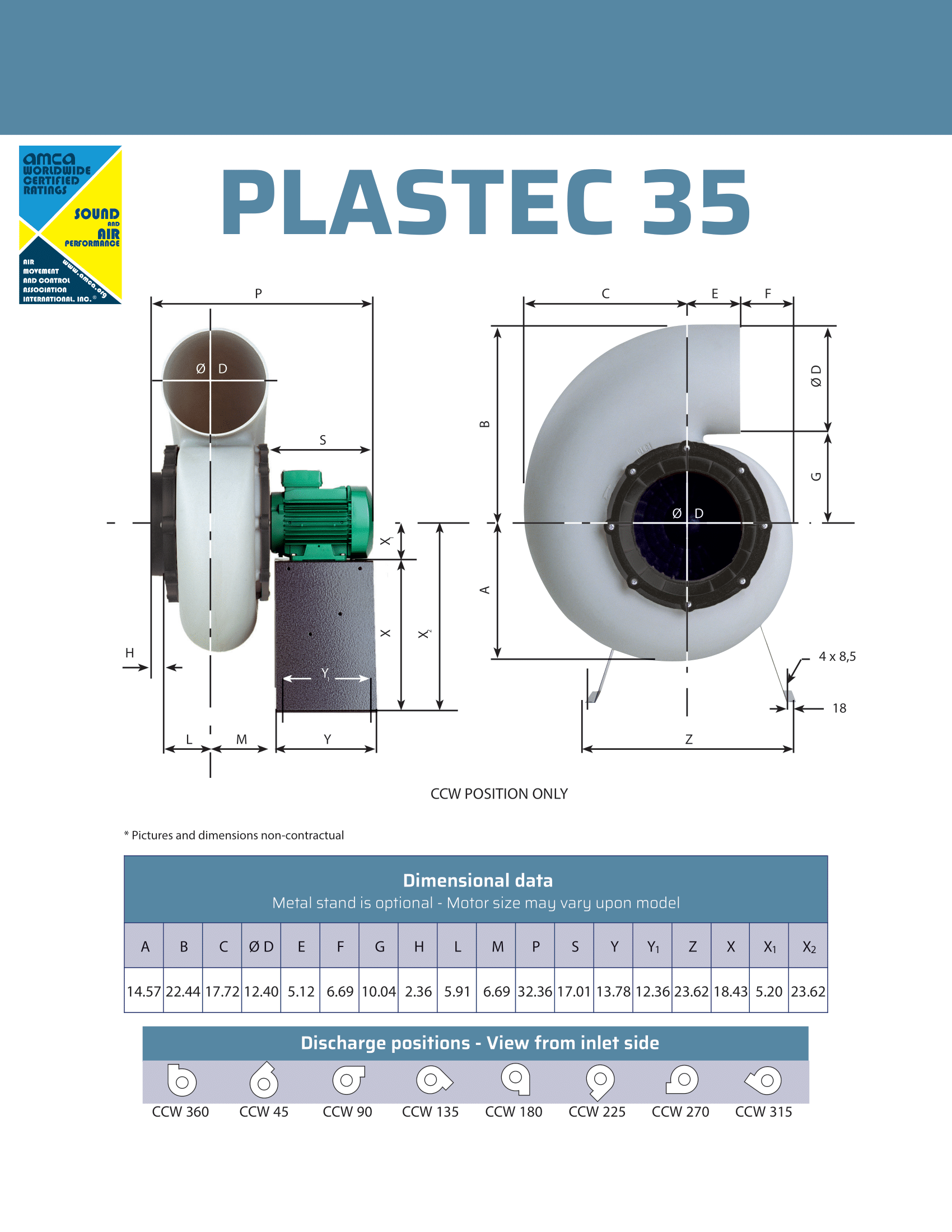

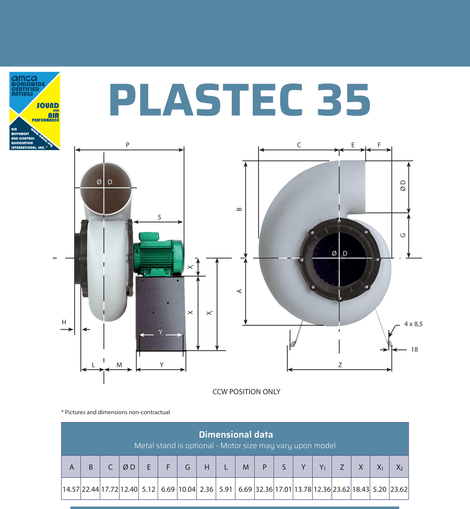

Plastec 35 Performance & Dimensional Specifications PDF
Static Pressure Range: 0.5 to 5.25 WG
Flow Range: 1060 to 5885 CFM
VFD Motors Option: Yes
Phase and Voltage: Three 230/460V
Inlet Diameter: 12.5"
Exhaust Diameter: 12.5”
*Within reason, a reducer or coupler may be utilized to adapt to smaller or larger size
*Also available in XPFC * CIP corrosion-resistant with carbon Impregnated polypropylene for explosive atmosphere applications.

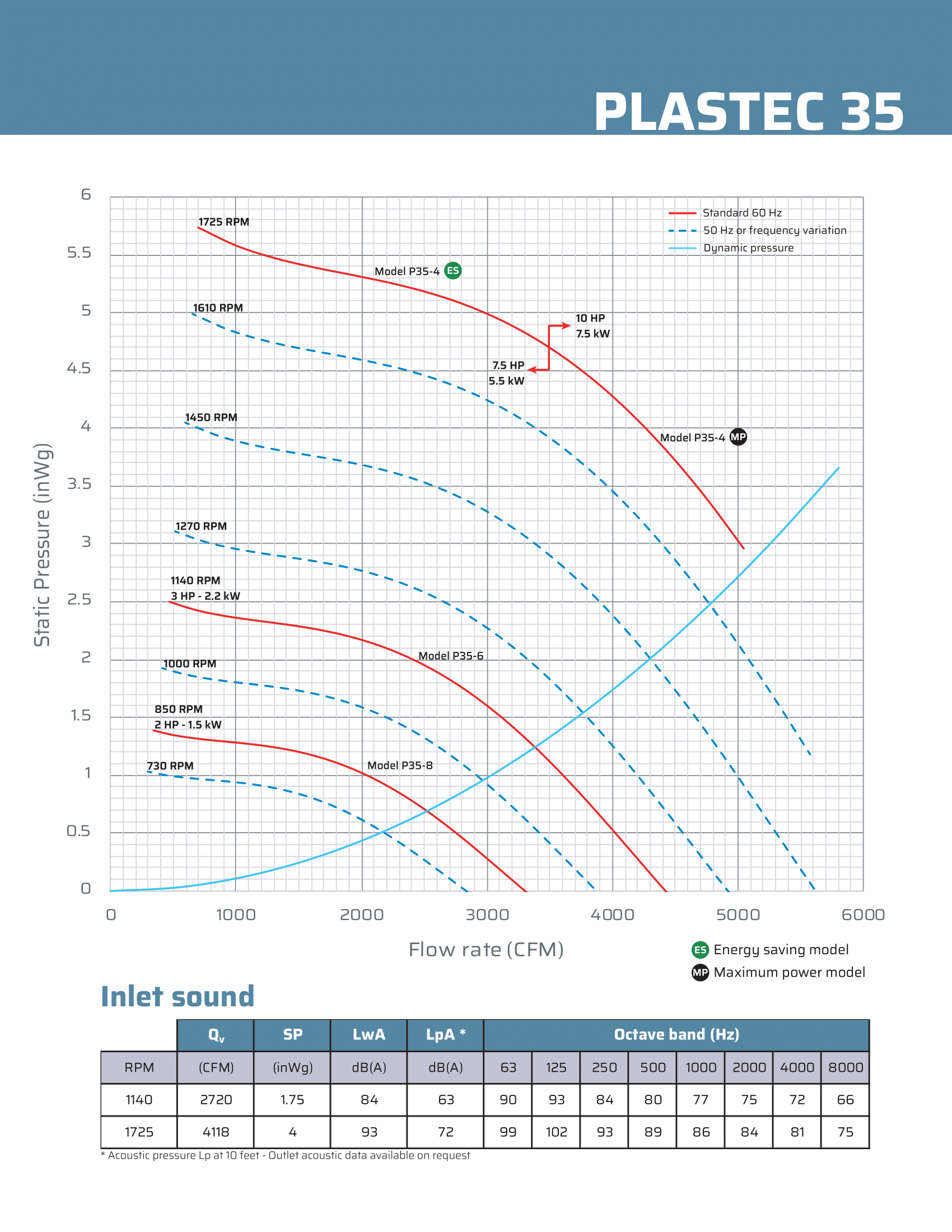

Test performance procedures for PLASTEC and STORM Series
Performance certified is for installation type D – Ducted inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories). Maximum fan input power over the range catalogued, or fan input power at the stated duty, or maximum motor input watts, voltage and frequency over the range catalogued, or motor input watts, voltage, and frequency at the state duty. – Rating Methods D.
The sound power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA standard 301. Values shown are for inlet Lwi and LwiA sound power levels for installation Type D: Ducted inlet, Ducted outlet. Ratings include the effects of duct end correction. The A-weighted sound ratings shown have been calculated per AMCA International Standard 301. Sound pressure levels are not licensed by AMCA international.
